Leisure Time Pools Inc Customer Service #143




Vari-Flo Control Valve Functions
  • Filter - For normal filtering and regular vacuuming
  • Backwash - For cleaning filter sand bed of accumulated debris
  • Rinse - Use after completing backwash cycle to ensure all dirty water is rinsed out of the filter to waste
  • Waste - By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line.
  • Recirculate - Water is recirculated through the valve by-passing the filter
  • Closed - Shuts off the flow from the pump to the filter

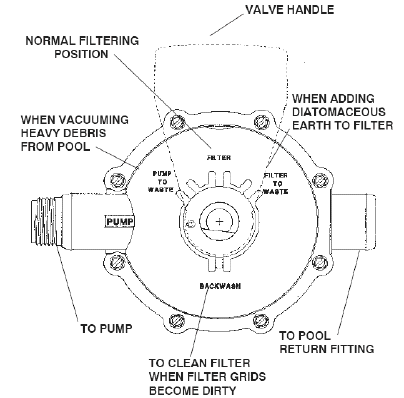

Doughboy 4 Position Valve
